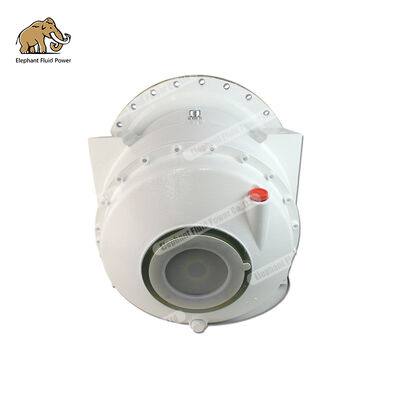

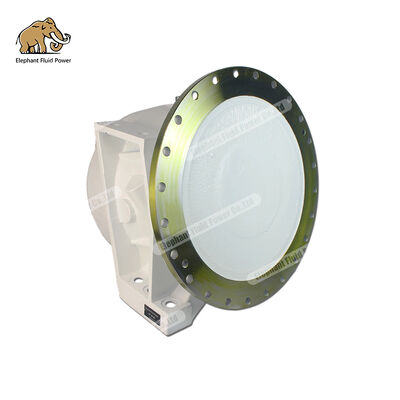

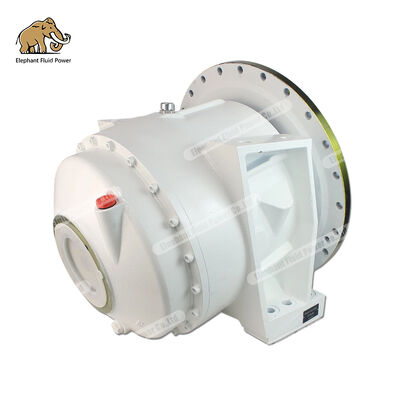

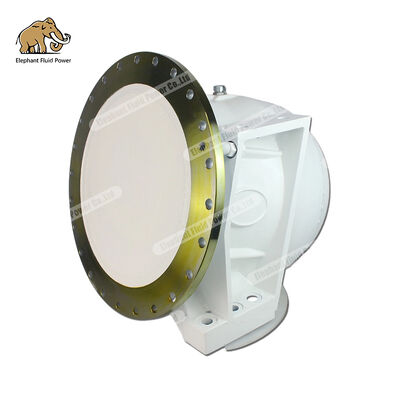

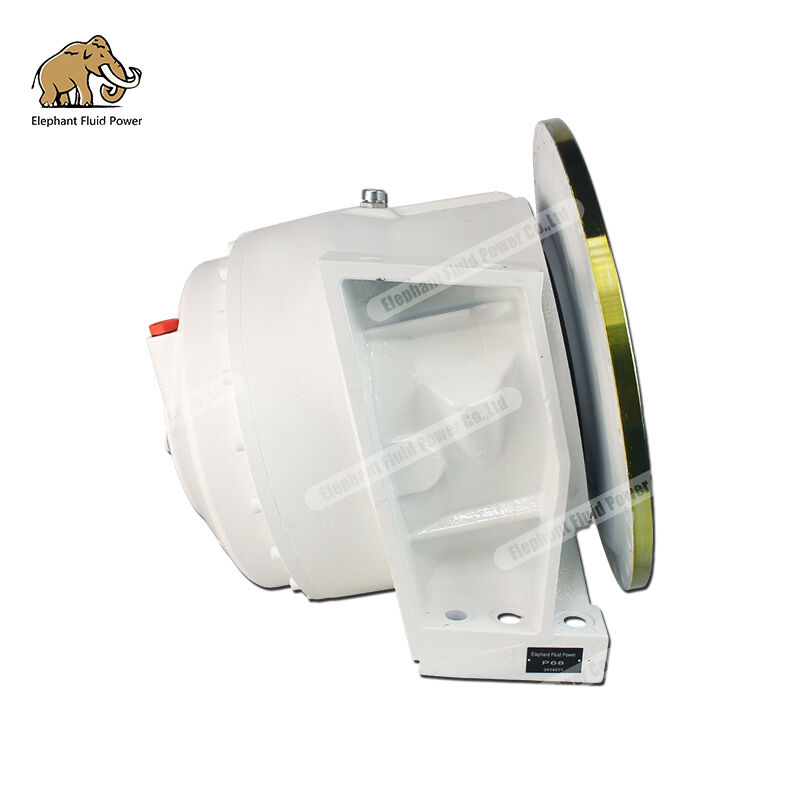

P68 gearbox reducer, a key component of concrete mixer trucks: usage and maintenance.

P68 Gearbox Reducer |

Concrete Mixer Truck Gear Reducer Alternative |

One-Stop Supply of All Hydraulic Components

I. P68 Gear Reducer: The Core Component of Concrete Mixer Truck Transmission

The P68 gear reducer is a planetary gear reduction device widely used in concrete mixer trucks. The working principle of a concrete mixer truck is to extract power from the chassis via a power take-off device, driving the variable pump of the hydraulic system. This converts mechanical energy into hydraulic energy, which is then transmitted to a fixed-displacement motor. The motor then drives the gear reducer, which in turn drives the mixing drum to mix the concrete. The gear reducer is the last link in the entire transmission chain, directly determining the speed and torque output of the mixing drum.

The P68 is a low-power version designed for light to medium-duty concrete mixer trucks. The gear reducer series includes multiple models such as P58, P68, P75, P75S, P75R, P80, P90, and P92. Among them, the P68, with its moderate power and reliable performance, is most widely used in 8-10 cubic meter mixer trucks.

II. Technical Parameters

The parameters of the P68 replacement reducer produced by our factory are as follows:

III. Correct Use, Installation, and Maintenance

Installation Points

• Before installation, confirm the reducer is in good condition and check that the dimensions of all parts connecting the motor and reducer match.**
• Before shipping, center the output flange and secure it with a support plate. The support plate should be removed after connecting and adjusting the mixing drum.
• After one week of use, the bolts between the reducer and the tank must be tightened to a torque of 300–350 N·m.
• If space permits, avoid vertical installation. Vertical installation requires significantly more lubricating oil than horizontal installation, which can easily cause the reducer to overheat and leak oil.
• When disassembling and installing components, avoid striking them with a hammer. When replacing gears, use original parts whenever possible and replace them in pairs.

Maintenance

• The reducer must be changed with 85W/90 heavy-duty gear oil after the first 250 hours of use. Thereafter, change the oil every 2,500 hours, but the oil change interval should not exceed one year.
• A magnetic drain plug is located at the bottom of the gearbox for oil drainage. When changing the oil, be sure to clean any metal debris from the magnetic drain plug.
• Check the oil level every 500 hours. Low oil levels can cause gear wear and bearing burnout.
• If the oil temperature exceeds 80℃, the machine must be stopped immediately for inspection.
• Check the cleanliness and sealing condition of the reducer output shaft weekly.

IV. Common Fault Diagnosis and Repair

Expert advice: If a large amount of copper or iron powder is found in the oil, it indicates that the internal gears or bearings are severely worn. The machine must be stopped immediately for inspection and repair to avoid further losses.

V. Gearbox models I can provide – covering all brands and sizes

PMP Series (Suitable for 8-20 cubic meters)

Models: PMB6R100
PMB6.5 / PMB6.5R120
PMB7A120 / PMB7B129
PMB7.5 / PMB7.8
PMB8.0 / PMB9Y

ZF Series (Suitable for 8-16 cubic meters)

Models: P3300 / P3301
P4300 / P5300
P7300 / P8300
PLM7 / PLM9

Bonfiber Series (Suitable for 8-16 cubic meters)

Models: 575L / 577L / 580L
Sauer Series

Models: TMG51.2 / TMG61.2 / TMG71.2

Other Brands

Daikin Series: DD25 / DD33 / PK86
KYB Series: 87K / RC100 / RC102

VI. One-stop solution for hydraulic components in concrete mixer trucks

Our factory not only manufactures speed reducers, but also provides a full range of hydraulic system components for concrete mixer trucks. The hydraulic system of a concrete mixer truck consists of components such as a hydraulic pump, hydraulic motor, speed reducer, oil cooler, and high-pressure hoses. Our factory can provide the following accessories:

Hydraulic Pumps

• Closed-loop variable displacement pumps (suitable for concrete mixer truck drives)
• Gear pumps (auxiliary hydraulic systems)
• Compatible brands: Rexroth, Sauer, Eaton, TOP, etc.

Hydraulic Motors

• Fixed displacement motors (matching reducers)
• Compatible brands: Rexroth, Sauer, Eaton, TOP, etc.

Oil Coolers (Radiators)

• Air-cooled oil coolers
• Matching temperature control switches
• Radiator filters

Hydraulic Accessories

• High-pressure oil pipes and fittings
• Suction/return oil filters and filters
• Hydraulic oil tanks

In short: From hydraulic pumps to hydraulic motors, from reducers to radiators, and then to high-pressure oil pipes and filters, our factory can provide a complete set of replacement parts for the hydraulic system of concrete mixer trucks. No need to run around; one order, one-stop service.

VII. Core Advantages of Our Products

Performance Comparison, Complete Interchangeability: The reducers produced by our factory are completely matched with the original products in terms of installation dimensions, speed ratio, torque output, and other key parameters. They are ready to use immediately without any modifications.

Strict Quality Control, Full Inspection Before Leaving the Factory: Every product undergoes rigorous load testing, noise testing, and sealing testing. The factory is ISO 9001 quality management system certified.

Significant Price Advantage: While ensuring quality, our products are priced at only 30%–50% of original equipment manufacturer (OEM) parts. For Chinese-made gearboxes of equivalent quality, the overall cost is 40%–60% lower than that of European and American suppliers.

Stable Supply, Fast Delivery: Standard orders ship in 3–7 days, large volume orders in 15–20 days. Urgent orders can have their delivery times coordinated.

VIII. What Problems Can I Solve for Distributors, OEMs, and Repair Service Providers?

Distributor Partners

• Significantly Increased Profit Margins: Purchasing at 30%–50% of the price of OEM parts, resulting in significantly higher profit margins.
• Stable and Uninterrupted Supply: Ample inventory ensures no stockouts.
• One-Stop Purchasing: A full range of accessories, including gearboxes, hydraulic pumps, hydraulic motors, radiators, and filters, can be ordered all at once.
• Zero Inventory Model: MOQ as low as 1-5 units, trial orders supported before mass production.
• One-year warranty, professional after-sales technical support.

OEM Manufacturer

• Full Range of Parts Available: Provides a complete set of hydraulic system parts for mixer trucks, facilitating integrated procurement for complete vehicles.
• Customization Service: Supports OEM/ODM brand customization.
• Bulk Purchase Discount: 15% discount for orders of 50 pieces or more; even better pricing for long-term partnerships.
• Complete factory inspection report provided with each shipment.
•


Repair Service Provider

• Reduced Repair Costs: Using replacement parts can save customers 50%-70% on repair costs.
• Timely Parts Supply: Urgent orders shipped within 24 hours, minimizing equipment downtime.
• Full Range of Parts Support: A complete range of repair parts including gearboxes, pumps, motors, radiators, filters, and sealing kits.
