Hello! I am from a professional hydraulic gear pump manufacturer in China. Today, in a Q&A format, I'll discuss alternatives to the Casappa gear pump KP30.43S0 04S3 LME GC-GE B NLA 80Y D. If you're struggling to find a replacement, I hope this answer will help you.

Question 1: What does this model number mean? What is the Casappa gear pump?

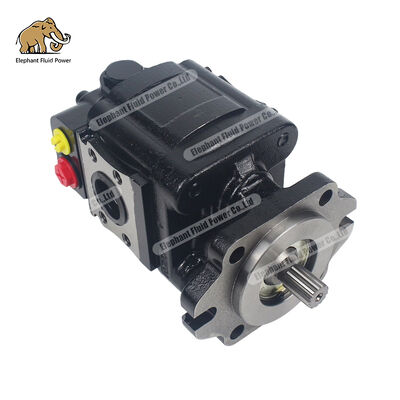

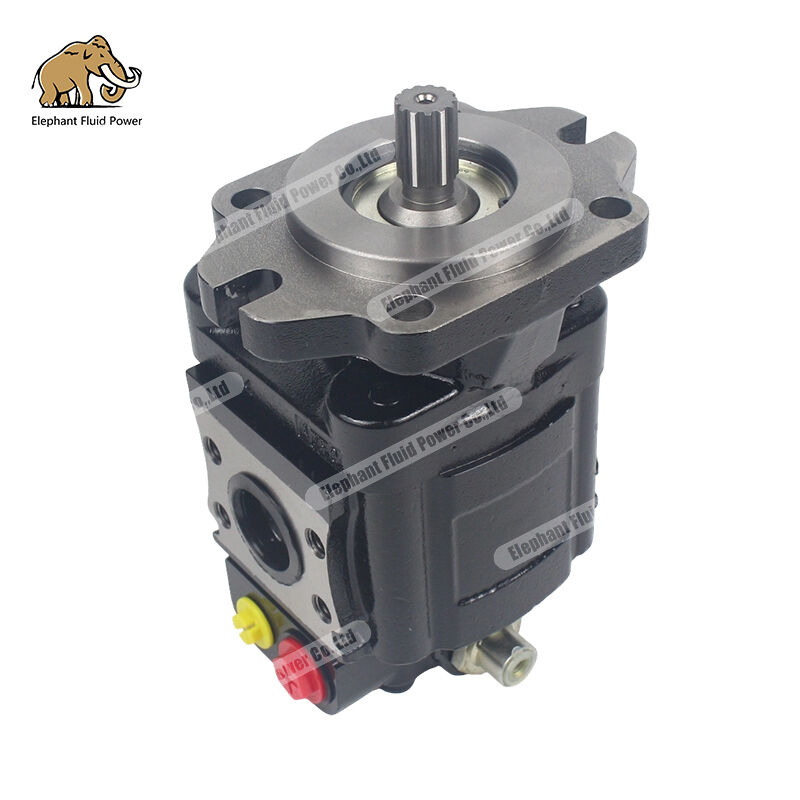

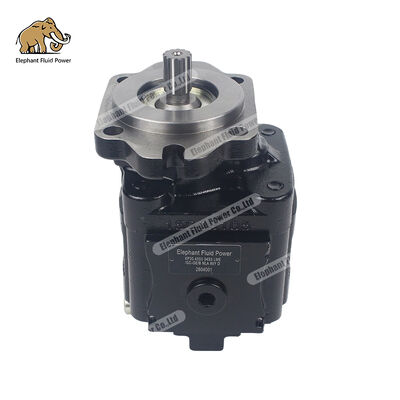

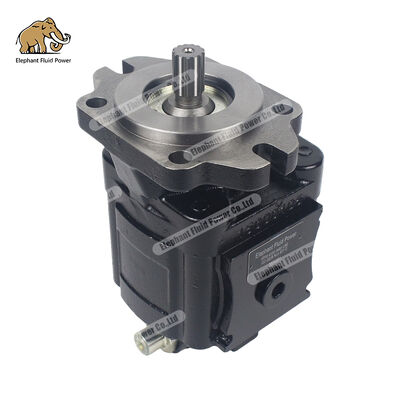

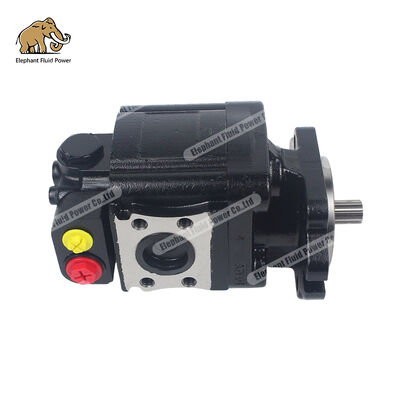

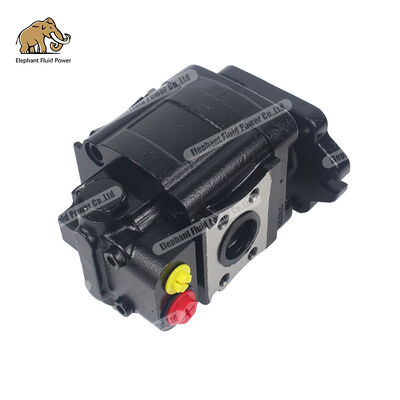

KP30.43S0 04S3 LME GC-GE B NLA 80Y D is the complete model code for a high-pressure cast iron gear pump from the Italian Casappa KAPPA 30 series.

• KP30: Represents the Casappa KAPPA 30 series, a cast iron housing gear pump, and one of the most widely used main series in the Casappa product line. .43: Represents the displacement specification, approximately 43.98 cc/rev, belonging to the medium displacement model of the KP30 series.
• S0: Represents the specific shaft type/configuration version.
• 04S3: Represents the port configuration and mounting interface specifications.
• LME GC-GE: Represents the sealing material and port combination (LME usually refers to a specific seal combination, GC-GE refers to the thread specifications of the inlet and outlet ports).
• B NLA 80Y D: Represents the rotation direction (clockwise), special configurations, and additional options.

Casappa is a renowned Italian manufacturer of hydraulic components, founded in 1952. Its KP series cast iron gear pumps are known for their high reliability, high efficiency, and compact design. The KAPPA 30 series displacement range covers 26.7 cc/rev to 73.82 cc/rev, and the KP30.43 is one of its best-selling models.

This gear pump is widely used in construction machinery (excavators, loaders), agricultural machinery (tractors, harvesters), and industrial hydraulic systems.

Second question: What equipment is this pump used in? Why is it needed?

The KP30 series gear pump, as a core power component in the hydraulic systems of construction and agricultural machinery, is responsible for converting mechanical energy into hydraulic energy to drive hydraulic motors or actuators to complete various actions. The KP30.43 displacement is particularly suitable for the hydraulic systems of medium-sized equipment.

Typical application scenarios include:

• Construction Machinery:
• Auxiliary hydraulic systems for mini excavators
• Steering systems and bucket lifting mechanisms for loaders
• Traverse and attachment drive systems for skid steer loaders
• Hydraulic systems for wreckers and aerial work platforms
• Agricultural Machinery:
• Hydraulic suspension systems for tractors
• Header drive systems for combine harvesters
• Hydraulic output for agricultural loaders
• Industrial Hydraulics:
• Hydraulic systems for injection molding machines
• Hydraulic drives for machine tools
• Material handling equipment

During long-term, high-intensity use, wear, leakage, and decreased efficiency in gear pumps are normal phenomena and not necessarily defects in the equipment. The structure of the gear pump determines that its core wear parts are the gear teeth, bushings, and seals. The replacement cycle of these components is closely related to the operating conditions of the equipment. Timely replacement with high-quality replacement gear pumps is key to ensuring the continuous and efficient operation of the equipment.

Three Questions: What are the specific technical parameters of KP30.43?

Based on the official specifications of the Casappa KP30 series and data from our factory's replacement products:

Gear pumps typically achieve a volumetric efficiency of 93%–96% at rated pressure and speed, a major technological advantage of the Casappa KP series gear pumps. The above parameters are from official Casappa data, and our factory's alternative products are fully comparable.

Four Questions: How to Install and Use Correctly? Are There Any Common Pitfalls?

Although gear pumps have a relatively simple structure, the details of installation and use directly affect the pump's lifespan and system reliability.

① Piping Connection: The first step is the connection, and also the most prone to problems.

The main diameter of the piping must be at least the same as the pump inlet diameter and must be sealed. To reduce power loss, the piping should be as short as possible, minimizing sources of hydraulic resistance (elbows, throttle valves, gate valves, etc.).

② Reverse Rotation Confirmation is Essential

Before installation, confirm that the pump's rotation direction is consistent with the drive motor/engine's rotation direction. The standard configuration for the KP30.43S0 is clockwise rotation (viewed from the drive shaft direction); a counter-clockwise version can be ordered upon request. Reversing the connection will cause the pump to fail to pump oil or even be damaged.

③ Ensure Pump is Filled with Hydraulic Oil Before Start-up

Gear pumps have a certain self-priming capability, but before the first start-up, ensure the pump chamber is filled with hydraulic oil. Dry starting is absolutely prohibited! After startup, allow the system to run unloaded for 10–30 minutes to purge air from the pipes. Only apply load after the system is circulating normally.

④ Hydraulic Oil Cleanliness – The Number One Killer of Gear Pumps

Oil cleanliness is a decisive factor in the lifespan of a gear pump. It is recommended to use mineral-based hydraulic oil conforming to DIN 51524 standards, with a cleanliness level of ISO 18/16/13 or higher. The suction filter element should have a filtration accuracy of 10–25 microns, and its nominal flow rate should be no less than twice the pump flow rate.

⑤ Speed ​​Range Control

The recommended minimum speed is typically 500–600 rpm to ensure sufficient lubrication and efficiency. The maximum speed should not exceed 3,000 rpm; excessive speed will lead to insufficient oil suction, cavitation, and abnormal wear.

⑥ Regular Maintenance Points

Check the hydraulic oil condition and filter every 500–1,000 hours; replace the hydraulic oil and filter element every 1,000–2,000 hours (specific intervals depend on operating conditions). Regularly check the pump body for external leaks; address any abnormalities promptly to prevent future problems.

Five Questions: What to do if problems arise during use?

Although gear pumps have a simple structure, various problems can still occur after prolonged use. Here are the most common faults and troubleshooting approaches:

Problem 1: Pressure fails to build up or is insufficient

Possible causes:

• Relief valve spool stuck or spring fatigue
• Severe internal pump leakage (excessive clearance between gears and housing, worn bushings)
• Air leakage or blockage in the suction line
• Low oil viscosity

Troubleshooting direction:

• Clean the relief valve spool, replace the fatigued spring
• Check the radial and end face clearances between the gears and pump housing—the most critical wear indicator for gear pumps is volumetric efficiency
• Check the suction pipe joint seal, clean the suction filter element
• Replace with hydraulic oil of appropriate viscosity

Problem 2: Insufficient flow or unstable output

Possible causes:

• Poor suction causing pump cavitation
• Clogged suction filter element
• Gear wear, decreased volumetric efficiency
• Insufficient speed

Troubleshooting direction:

• Clean the suction filter screen, check if the suction pipe is flattened
• Test the pump's volumetric efficiency—if the efficiency is lower than... 80% indicates severe internal wear, requiring replacement.
• Check if the drive speed is within the rated range.

Problem 3: Abnormal noise or vibration

Possible causes:

• Insufficient oil suction or cavitation (most common cause)
• High oil viscosity (especially common during low-temperature starts)
• Pump shaft and motor shaft misalignment
• Bearing wear

Troubleshooting direction:

• Check if the suction filter is clogged and if the suction pipe is leaking—this is the first step in troubleshooting gear pump noise.
• Replace with hydraulic oil suitable for low temperatures and preheat the system under no-load conditions.
• Recalibrate the coupling concentricity (concentricity should be controlled within 0.05 mm). (Within)
• Inspect the bearings. If there is clearance or scratches on the roller surface, they must be replaced.

Problem 4: External Oil Leakage

Possible Causes:

• Aging, deformation, or improper installation of the shaft end oil seal
• Damaged gasket on the housing mating surface, loose bolts
• Aging of the oil port connector seal

Troubleshooting Direction:

• Replace the shaft end seal – ensure the lip faces the oil cavity
• Replace the new gasket and tighten the bolts evenly in a diagonal sequence
• Replace the oil port connector seal and tighten the connector.

Problem 5: Abnormal Oil Temperature Increase

Possible Causes:

• The relief valve is set at too high a pressure, causing long-term overflow
• Inappropriate oil viscosity (too high or too low)
• Severe internal wear of the pump, resulting in decreased volumetric efficiency

Troubleshooting Direction:

• Check and readjust the relief valve pressure to the rated value
• Replace with hydraulic oil of appropriate viscosity
• If the oil temperature remains excessively high and is accompanied by a decrease in flow rate, it indicates severe internal wear of the pump, requiring replacement.

Core Judgment for Gear Pump Repair:

The repair value of a gear pump mainly depends on its volumetric efficiency. A simple test involves measuring the pump's actual output flow at rated speed and comparing it to the theoretical flow calculated by multiplying the theoretical displacement by the speed. If the actual flow is less than 80% of the theoretical flow, the repair cost may be close to the cost of replacing the pump. In this case, replacing the pump with a replacement is more cost-effective than a major overhaul.

Six Questions: What are the differences between our factory's replacement products and the original equipment manufacturer's (OEM) products?

The core difference can be summed up in three words: cost-effectiveness.

Gear pumps are a technologically mature hydraulic component. After decades of development, China's hydraulic industry has achieved internationally advanced manufacturing processes for gear pumps. Currently, 55% of Chinese hydraulic products are exported to the US and EU, directly competing with international hydraulic giants such as Danfoss, Rexroth, Parker, and Casappa.

In the gear pump field, domestic substitution for imports is already very common. Industry insiders have stated frankly: for low-cost components like gear pumps, domestic substitution for imports is even cheaper and can be done on par. Unless there are special requirements, gear pumps can essentially replace imported pumps completely.

Several core advantages of our products:

Performance Comparison, Reliable Quality:

Our KP30.43S0 replacement gear pumps utilize a high-strength cast iron housing, while the gears and shafts are made of high-strength alloy steel. After heat treatment and precision grinding, they ensure stable operation under high pressure and high load conditions. Maximum continuous pressure is 250 bar, and peak pressure is 280–300 bar, fully matching the original manufacturer's performance.

Strict Quality Control, Full Inspection Before Leaving the Factory:

Every product undergoes pressure resistance testing, flow testing, leakage testing, and performance verification to ensure zero-defect delivery. Our factory is ISO 9001 quality management system certified, and the entire production process is traceable.

Complete Interchangeability, Ready to Use:

The mounting flange (European standard 4-hole flange, positioning diameter 50.8 mm), drive shaft (1:8 taper shaft), and oil port thread specifications are completely compatible with the original KP30 series, allowing for direct replacement without any modifications.

Flexible Seal Selection:

Standard NBR seal, compatible with mineral-based hydraulic oils; optional FKM fluororubber seal, suitable for high-temperature or corrosive media environments.

Significant Price Advantage:

Original Casappa imported parts cost approximately 4,000–6,000 RMB. Our replacement products are 30%–50% cheaper than the original manufacturer's price. Purchasing gear pumps of equivalent quality from China results in overall costs 20%–40% lower than European and American suppliers.

Stable Supply and Fast Delivery:

 Standard orders ship in 3–7 days, large volume orders in 15–20 days. Urgent orders can be shipped within 24 hours. Global sea freight, air freight, and express logistics services are supported.

Seven Questions: What practical problems can I help you solve?

Distributor Partners

• Significantly Increased Profit Margin: Purchasing at 30%–50% of the price of original parts and selling at market prices results in profit margins far exceeding those of original parts. Chinese hydraulic companies now export 55% of their products to the US and EU, competing with international hydraulic giants like Casappa, demonstrating the widespread acceptance of Chinese-made gear pumps in the international market.
• Stable and Uninterrupted Supply: Ample finished product inventory ensures no stockouts impact business.
• Worry-Free After-Sales Service: One-year warranty, providing professional technical support and spare parts service.
• Zero Inventory Support: MOQ as low as 1-5 units, allowing for trial orders before large-scale production, reducing inventory pressure and capital tied up.
• Technical Empowerment: Providing distributors with product training, troubleshooting guidance, and after-sales maintenance support.

OEM Manufacturing:

• Customized Services: Supports OEM/ODM customization, allowing for customized packaging and labeling to meet your brand needs. The KP series also supports dual and triple pump combinations to adapt to multi-circuit oil supply requirements.
• Strict Quality Control System: Each batch of products comes with a complete factory inspection report, ensuring full quality traceability.
• Bulk Purchase Discounts: Enjoy tiered discounts on bulk purchases, with a 15% discount for orders of 50 pieces or more. Long-term partnerships offer even better pricing.
• Collaborative Technical Development: We can jointly develop optimized solutions for specific equipment, providing one-stop support services from design to mass production.

Repair Service Provider:

• Directly Reduced Repair Costs: Compared to original equipment manufacturer (OEM) parts, using our products can save end customers 50%–70% on repair costs, enhancing the competitiveness of your repair quotes.
• Repair Solution Support: We provide detailed repair manuals and troubleshooting guides for the KP30 series gear pumps to help improve repair efficiency.
• Timely Parts Supply: Urgent orders can be shipped within 24 hours, reducing equipment downtime and improving customer satisfaction.
• Repair Kit Parts Supply: We provide repair kits for seals, gears, bushings, bearings, and other repair parts to support your gear pump remanufacturing business.

Eight Questions: Why Choose to Purchase from Us in China?

China's hydraulic manufacturing industry has already traversed a path from "imitation" to "surpassing."

The Current Status of China's Gear Pump Industry:

Currently, China's hydraulic gear pump manufacturing level is quite mature. Mass production capabilities are available for pressure ratings up to 25 MPa. Most products are exported to the United States and the European Union, directly competing with international hydraulic industry leaders such as Danfoss, Rexroth, Parker, and Casappa, and collaborating with partners of internationally renowned OEMs such as Johhn Deeere, JCB, and Caaterpillar.

China has formed a complete hydraulic industry cluster, with a highly mature industrial chain from casting to precision machining, from seals to bearings. Casappa itself also has a branch in Shanghai (Casappa Hydraulics Shanghai Co., Ltd.), having cultivated the Chinese market for many years, which demonstrates Casappa's emphasis on the Chinese supply chain and market.

Our advantages over Casappa alternatives:

Same quality, 30%–50% cheaper

Same specifications, in stock, 3–7 day shipping

Same service, one-year warranty, full technical support

Benefited by China's industrial clusters, overall costs are 20%–40% lower than European and American suppliers

Nine questions: What are the specific product parameters? How can I contact you?
