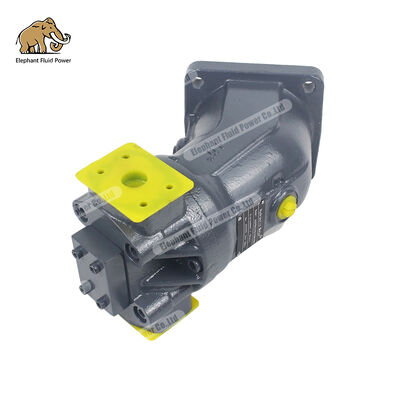

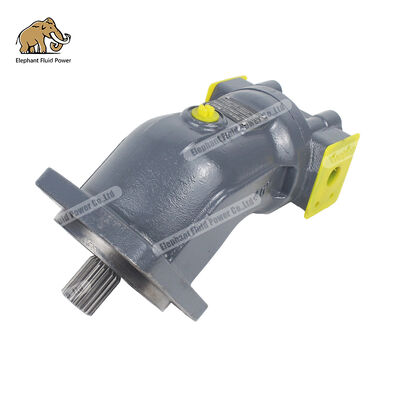

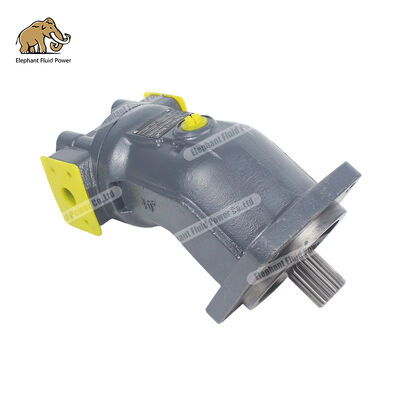

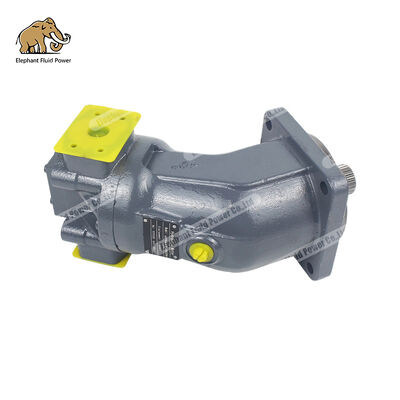

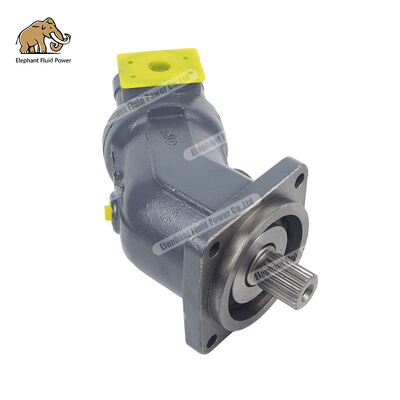

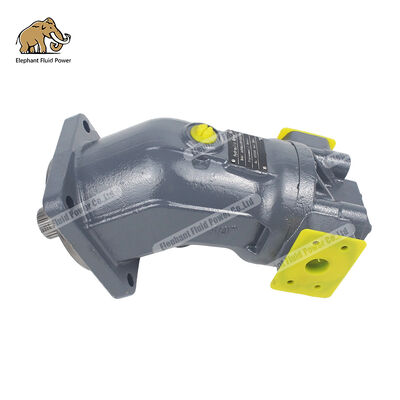

AA2FM56/61W-VTD029U-S hydraulic motor used in excavators, concrete pump trucks, and cranes.

AA2FM56/61W-VTD029U-S Replacement Hydraulic Motor

Q&A: Explaining Everything About This Rexroth Replacement Part

Hello! I am from a professional hydraulic motor manufacturer in China, specializing in replacement products for Rexroth A2FM/A6VM series motors. Today, I'll be discussing the AA2FM56/61W-VTD029U-S hydraulic motor in a Q&A format—if you're struggling to find a replacement, I hope this answer will help you.

Question 1: What exactly is the AA2FM56/61W-VTD029U-S?

This is a slant-shaft axial piston fixed displacement motor from the Rexroth A2FM series. 56 represents a displacement of 56 cc/r, a very widely used specification in the A2FM series. It uses a slant-shaft design—the cylinder axis is at an angle to the drive shaft axis, converting hydraulic energy into mechanical energy through a connecting rod and piston assembly, outputting torque and speed.

This series of motors has a nominal pressure of up to 400 bar and a peak pressure of up to 450 bar. The AA2FM56 has a maximum speed of 6000 RPM and is widely used in hydrostatic transmissions in both open and closed circuits. The suffix VTD029U indicates specific configuration options, including control valve type and port specifications.

Second Question: Where is this motor installed? What equipment is it used on?

The typical applications of the A2FM/AA2FM series motors cover a very wide range—they can be found in excavators, concrete mixer trucks, concrete pump trucks, road rollers, pavers, cranes, pumping stations, and other construction machinery. The AA2FM56 is particularly suitable for power drives of medium-sized construction machinery and mobile machinery, and it can handle any application requiring high pressure, high speed, and high power density.

Third Question: How to install and use it correctly? Are there any common pitfalls?

① The installation environment must be clean.

Hydraulic oil contamination is the leading cause of premature wear of axial piston units. The installation site must be dust-free and free of foreign objects to prevent contaminants such as weld beads and metal shavings from entering the hydraulic lines. Axial piston units should only be installed under clean conditions, using clean connectors, hydraulic lines, and accessories.

② Fill with oil before startup

Before the first startup, the pump/motor housing must be filled with clean working oil through the drain port. Never start it otherwise! This is a fatal mistake that many people overlook. Run the pump under no-load for approximately 10-30 minutes until the system is circulating normally before applying a load.

③ Check oil level and suction height

This motor has a certain self-priming capability and can be installed on top of the oil tank, with a suction height not exceeding 0.5m. However, always ensure the hydraulic oil level in the tank is sufficient before use. A low oil level will cause the pump to draw in air, reducing output flow.

④ Regular oil changes and cleanliness are key

The hydraulic oil should be changed every 1000-3000 hours of operation or every six months. The higher the cleanliness of the hydraulic oil, the longer its service life.

⑤ Select the correct mounting bolt torque

Use ISO metric threads conforming to DIN 13 or ASME B1.1 during installation. The tightening torque must be checked against VDI 2230 and must not exceed the maximum allowable tightening torque of the threaded hole.

Four Questions: What to do if problems arise during use?

Common hydraulic motor faults and troubleshooting methods are as follows:

Problem 1: Low speed or insufficient torque

Possible causes: Insufficient oil supply, excessive internal leakage, unsuitable oil viscosity

Troubleshooting direction: Check the oil supply system, clean the filter, and replenish the oil; if there is severe internal leakage, it indicates wear on the plunger assembly or distributor plate, requiring disassembly and inspection.

Problem 2: Abnormal noise or vibration

Possible causes: Air entering the system (air leakage in the suction pipe), oil contamination, bearing wear

Troubleshooting direction: Check the sealing of the suction pipe, replace with clean hydraulic oil. Disassembling and Inspecting Bearings – If bearings show clearance or scratches and discoloration on the roller surface, they must be replaced.

Problem 3: External Oil Leakage

Possible Causes: Aging or damage to the shaft end seal, loose housing bolts

Troubleshooting Direction: Replace the shaft end seal ring and tighten the bolts to the specified torque.

Problem 4: Excessive Oil Temperature

Possible Causes: Long-term overpressure operation, cooling system malfunction, oil deterioration

Troubleshooting Direction: Check the relief valve setting pressure, clean the radiator, and replace the hydraulic oil.

Key Judgment: If the volumetric efficiency is below 80%, a major overhaul is required. When checking the plunger assembly seal, block the oil inlet at the top and side of the plunger with your finger. Pulling the plunger and feeling a strong suction that immediately retracts after releasing it indicates a good seal.

Five Questions: What are the differences between your factory's replacement products and the original manufacturer's?

The core difference is only two words: price.

In terms of performance and quality, our goal is to match the original manufacturer's. The A2F series slant shaft fixed displacement pumps/motors are completely interchangeable with similar products of the same type and specifications both domestically and internationally. With a displacement of 56 cc/r, rated pressure of 400 bar, and peak pressure of 450 bar, these key parameters are identical. Our products are fully interchangeable with the original brand, featuring low noise, high efficiency, high reliability, small size, and high power density.

Several advantages of our products:

Strict quality control, 100% factory inspection:

Every unit undergoes pressure testing, flow testing, and leakage testing to ensure zero-defect delivery.

Fully interchangeable with the same specifications:

Dimensions, mounting flanges, and oil port specifications are perfectly matched, requiring no modification.

Significant price advantage:

Original parts are expensive and have long delivery times; we can offer prices at 30%-50% of the original factory price.

Stable supply:

Standard orders ship in 3-7 days, large volume orders in 15-20 days.

Six questions: What practical problems can you help my customers solve?

You are a distributor:

• Profit margins for imported parts are getting thinner and thinner; customers find them too expensive and can't afford the wait. Our products allow you to achieve the same quality at half the price, significantly increasing your profit margin.
• Worried about inventory backlog? MOQ as low as 1-5 units, trial orders are welcome before mass production.
• One-year warranty, comprehensive after-sales technical support, customer peace of mind, and your peace of mind.

You are an OEM manufacturer:

• Need private label customization? OEM/ODM supported, packaging and labeling according to your brand.
• Bulk purchases of 50 pieces or more enjoy a 15% discount, long-term cooperation offers even better prices.
• Complete factory inspection report provided with each shipment, quality traceability guaranteed.

You are a repair service provider:

• End customers' biggest fear when repairing equipment is expensive and slow parts delivery. Using our replacement parts in your repair quotes can save customers 50%-70% in costs, significantly improving your competitiveness.
• Urgent orders can be shipped within 24 hours, minimizing downtime for customers and enhancing your reputation.
• We also supply repair kits, plungers, distributor plates, and other repair parts, supporting your pump/motor remanufacturing business.

Seven questions: Why choose to source from us in China?

China's hydraulic manufacturing industry is no longer what it was ten years ago.

China have formed complete hydraulic industry clusters, with a highly mature industrial chain from casting to precision machining, from seals to bearings. For products of equivalent quality, the overall cost is 40%-60% lower than that of European and American suppliers.

As a professional hydraulic motor manufacturer, we have accumulated rich production and application experience in A2FM series replacement products. For 30%-50% of the price of original parts, you can buy products of the same specifications and interchangeability, plus a one-year warranty and full technical support—this is not empty talk, but a promise we fulfill every day.
